  • Ultra-wideband UWB ranging module precision creates the future of precision ranging

    2023-09-13 525

    Introduction:

    With the continuous progress of science and technology, ranging technology plays an important role in all walks of life. The emergence of Ultra-Wideband (UWB) ranging module has brought a revolutionary change to the ranging field. This paper will delve into the accuracy of the UWB ranging module, introduce its principle and application scenarios, and explore how to optimize its performance to meet different needs.

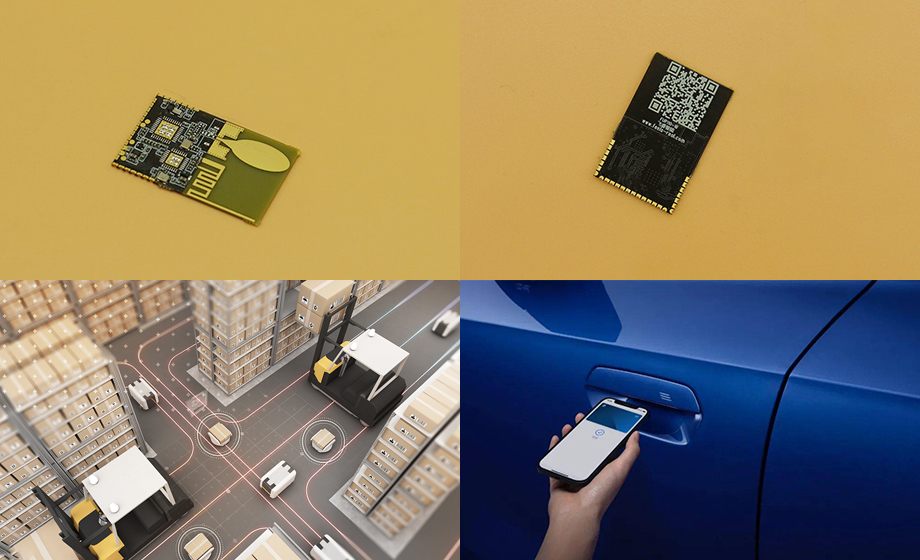

    Ultra-wideband UWB ranging module precision creates the future of precision ranging

    Chapter one: the basic principle of UWB ranging module


    1.1 Definition and characteristics of UWB ranging module

    UWB ranging module is a device that uses UWB technology for accurate ranging. Its features include high bandwidth, short pulse time, low energy consumption and strong resistance to multipath interference. Compared to traditional ranging technology, UWB ranging module can provide higher accuracy and stability.


    1.2 Working principle and principle analysis of UWB ranging

    The UWB ranging module sends a series of ultra-short pulse signals and receives and processes the signals reflected back from the target object. In the process of signal transmission and reception, distance and position information can be accurately calculated by calculating the propagation time and waveform characteristics of the signal.


    1.3 Structure and components of UWB ranging module

    A UWB ranging module usually consists of a transmitter, a receiver and a signal processing unit. The transmitter is responsible for sending ultra-short pulse signals, the receiver is responsible for receiving and amplifying the signal reflected back by the target object, and the signal processing unit is responsible for calculating distance and position information.


    Chapter 2: The application scenario of UWB ranging module


    2.1 Application of UWB ranging module in indoor positioning

    In the field of indoor positioning, the ultra-wideband UWB ranging module enables high-precision personnel positioning and navigation. For example, in logistics warehousing, the UWB ranging module can be used to locate and track goods, improving the efficiency and accuracy of warehousing management.


    2.2 Application of UWB ranging module in intelligent transportation

    In intelligent transportation systems, UWB ranging modules can be used for distance measurement and collision avoidance between vehicles. By monitoring the distance and relative speed between vehicles in real time, alerts can be issued or measures can be taken to ensure road safety.


    2.3 Application of UWB ranging module in industrial automation

    In the field of industrial automation, UWB ranging modules can be used for positioning and navigation of robots. By installing the UWB ranging module on the robot, the accurate control and scheduling of the robot position can be realized, and the production efficiency and accuracy can be improved.


    2.4 Application of UWB ranging module in logistics warehousing

    In the field of logistics and warehousing, the UWB ranging module can be used to achieve high-precision positioning and tracking. By installing the UWB ranging module on the goods, the position and status of the goods can be monitored in real time, improving the efficiency and visualization of logistics management.


    Chapter three: The key factors of UWB ranging module accuracy


    3.1 Stability of signal transmission and reception

    The accuracy of UWB ranging module is affected by the stability of signal transmission and reception. To ensure the stable transmission and accurate reception of the signal is one of the key factors to improve the accuracy of the ranging module.


    3.2 Energy consumption and power consumption of the module

    The energy consumption and power consumption of UWB ranging module also affect its accuracy. Lower energy and power consumption can extend the life of the module and improve its performance stability.


    3.3 Hardware parameters and design optimization

    The hardware parameters and design optimization of UWB ranging module are also important factors affecting the accuracy. For example, the design and selection of the antenna, the adjustment of the transmitting power, the control of the receiving sensitivity, etc., need to be comprehensively considered to optimize the performance and stability of the module.


    3.4 Algorithm optimization and data processing

    In addition to hardware factors, algorithm optimization and data processing are also the key to improve the accuracy of UWB ranging module. By optimizing the ranging algorithm and data processing method, the accuracy of distance measurement can be improved and the error and interference can be eliminated.


    Chapter 4: The method of performance optimization of UWB ranging module


    4.1 Optimization of signal processing algorithms

    Optimizing signal processing algorithm is an important means to improve the performance of UWB ranging module. The accuracy of distance measurement can be improved by introducing more complex signal processing algorithms, reducing noise interference and increasing sampling rate.


    4.2 Improving Hardware design and performance

    Improving the hardware design and improving the hardware performance can also effectively optimize the performance of UWB ranging module. For example, optimizing antenna design, improving transmitting power and receiving sensitivity, reducing signal attenuation, etc., can improve the range measurement accuracy of the module.


    4.3 Select the appropriate ranging algorithm and model

    According to different application scenarios, choosing the appropriate ranging algorithm and model is also the key to optimize the performance of UWB ranging module. Different algorithms and models are suitable for different working environments and requirements, and should be selected and optimized according to the actual situation.


    4.4 Perform accurate data calibration and correction

    Accurate data calibration and calibration of the UWB ranging module is also an important step in optimizing performance. The accuracy and stability of distance measurement can be guaranteed by regular calibration and correction of the module.


    Chapter 5: Evaluation index of UWB ranging module accuracy


    5.1 Distance measurement error

    Distance measurement error is an important index to evaluate the accuracy of UWB ranging module. The lower distance measurement error means that the module has higher accuracy and accuracy.


    5.2 Signal anti-interference capability

    The signal anti-jamming ability of UWB ranging module is also an important index to evaluate its accuracy. Strong anti-interference ability can make the module maintain stable ranging performance in complex environment.


    5.3 Energy consumption and power consumption evaluation

    Energy consumption and power consumption are equally important for evaluating the performance of UWB ranging modules. Low energy and power consumption can extend the service life of the module and improve its stability and reliability.


    5.4 Delay and response speed evaluation

    Delay and response speed are also one of the indexes to evaluate the performance of UWB ranging module. Low delay and fast response speed can improve the real-time performance and application effect of the module.


    Chapter 6: The future development trend of UWB ranging module


    6.1 Continuous improvement of accuracy

    As the demand for ranging technology continues to increase, the accuracy of UWB ranging modules will continue to improve. Future trends include more accurate distance measurements, lower error margins, and better adaptability to complex environments.


    6.2 Continuous expansion of application fields

    With the maturity of UWB ranging technology and the recognition of application value, it is expected that UWB ranging module will be applied in more fields. In addition to the indoor positioning, intelligent transportation, industrial automation and logistics warehousing already involved, it will also play an important role in military, medical, security and other fields.


    6.3 Integration of embedded and integrated technologies

    Future trends also include the integration of UWB ranging modules with embedded systems, iot and other sensor technologies. By integrating UWB ranging modules into more devices and systems, a wider range of applications and higher overall performance can be achieved.


    Conclusion:

    As a representative of precision ranging technology, UWB measuring module has strong measuring ability and wide application potential. Its accuracy and stability can be further improved by optimizing signal processing algorithms, improving hardware design and performance, selecting suitable ranging algorithms and models, and performing accurate data calibration and correction. In the future, with the continuous development of technology, the UWB ranging module will play a role in more fields, providing more accurate and reliable ranging solutions for all walks of life.
