  • UWB development board - high precision positioning tool

    2023-06-03 479

    In the field of Internet of Things, wireless signal location technology is a very important link. UWB technology is a relatively new technique for indoor positioning. Compared with other indoor positioning technologies, UWB has higher positioning accuracy and lower error, which has become a new direction of indoor positioning. So, what is UWB? What is the UWB development Board? What are their applications in indoor positioning?

    UWB development board - high precision positioning tool

    I. Introduction of UWB technology


    UWB, or ultra-wideband technology, refers to a wireless transmission technology that transmits data in a very short period of time (nanosecond level). Its data transmission rate is very fast and can be carried out in the broadband spectrum, so it is also known as "band width discrete modulation technology". Uwb technology enables precise positioning at a distance of about 10 meters using very low power (microwatt level).


    The application of UWB technology in indoor positioning is very wide, which can be used in UAV, AGV, smart home, indoor navigation, indoor map and many other fields.


    Two, UWB development board introduction

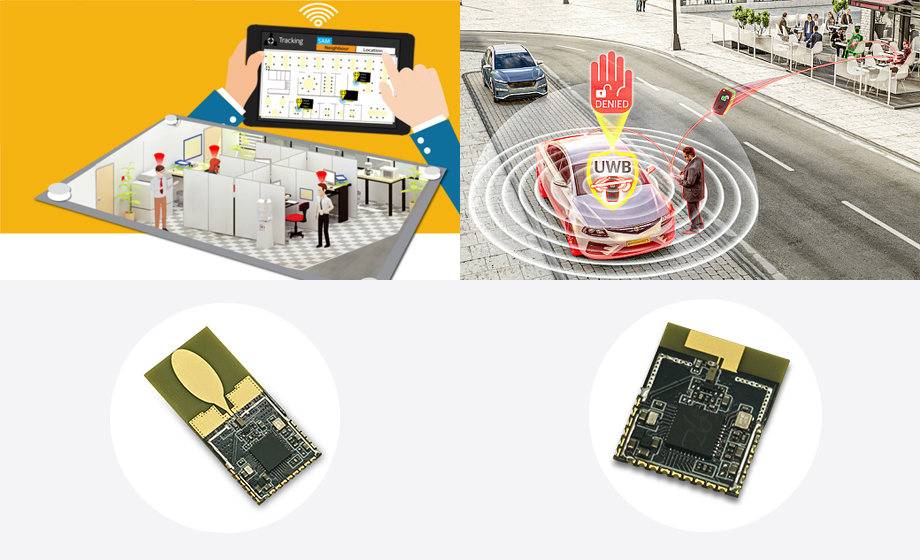

    UWB development board is a hardware development platform based on UWB technology. Generally, the UWB development board will be equipped with a UWB chip (such as DW1000), which has a highly integrated design and integrates RF circuit, digital signal processor, memory, sensor and other hardware resources. It can be connected through external sensors, computers and other external devices, providing a convenient way. It makes it very convenient for developers to carry out the application development of UWB technology.


    Third, the application of UWB development board in indoor positioning


    As a new method of indoor positioning technology, UWB technology has been widely used in the field of indoor positioning and navigation. So, in this field, UWB development board has what kind of application?


    1. Advantages of UWB positioning technology


    UWB technology has obvious advantages in indoor positioning, mainly including:


    (1) High-precision positioning ability. UWB technology can realize indoor positioning with an accuracy of less than 10 cm, and has the ability of high-precision positioning, enabling more accurate and reliable indoor navigation.


    (2) Wireless signal penetration capability. UWB signals can penetrate obstacles such as concrete and stones and can be well transmitted in indoor environments to avoid signal loss caused by obstacles.


    (3) Cross-platform adaptation ability. UWB technology supports the access of multiple platforms, including mobile phones, computers, Internet of Things devices, etc., with strong cross-platform adaptation ability.


    (4) Low power consumption design. UWB technology uses very low power during positioning and can be powered by ordinary batteries while extending the service life of the device.


    2. Application cases of UWB development board


    UWB development board has a wide range of applications in the field of indoor positioning and navigation. Below, we will briefly list a few typical cases.


    (1) Indoor navigation system


    UWB development board can be equipped with map and positioning algorithm, which can achieve high precision indoor navigation. For example, large places such as corporate office buildings, hospitals, shopping centers and airports often have intricate building structures and multiple floors, and using UWB technology for indoor navigation can help users find their destinations faster and more accurately.


    (2) security system


    UWB technology can not only be used for precise location, but also for security applications. For example, in crowded places such as shopping malls and exhibition halls, the UWB chip installed on the UWB development board can be used for personnel tracking to ensure personnel safety and security.


    (3) Smart home


    Smart home is an important trend in the future, and the application of UWB technology in smart home is also very extensive. For example, UWB development board can be applied to indoor environment monitoring, curtains, automatic control of air conditioning, intelligent lighting, intelligent anti-theft, etc.


    This article mainly explains the application of UWB development board in indoor positioning and navigation. UWB technology can achieve high precision indoor positioning, and has strong penetration ability and cross-platform adaptation ability. The UWB development board can be used in many fields such as indoor navigation, security system and smart home.


    It is hoped that this article can give you some understanding of UWB development board and indoor positioning technology, and also hope that this article can provide some help to the research and application of indoor positioning and UWB technology.
